Our 3-axle rear-dumping semi-trailer has a frame made of high-quality manganese plates welded together with the frame beam, so that the bottom of the upper loading box is sunk into the frame. On the one hand, it reduces the height of the load-bearing surface, reduces the center of gravity of the loading, and improves the safety of the vehicle. At the same time, the upper loading box fits tightly with the frame, which also increases the driving stability of the vehicle. The strength of the carriage is higher, the lifting force, stiffness, and toughness are also greatly improved, and the load-bearing capacity is enhanced without deformation.

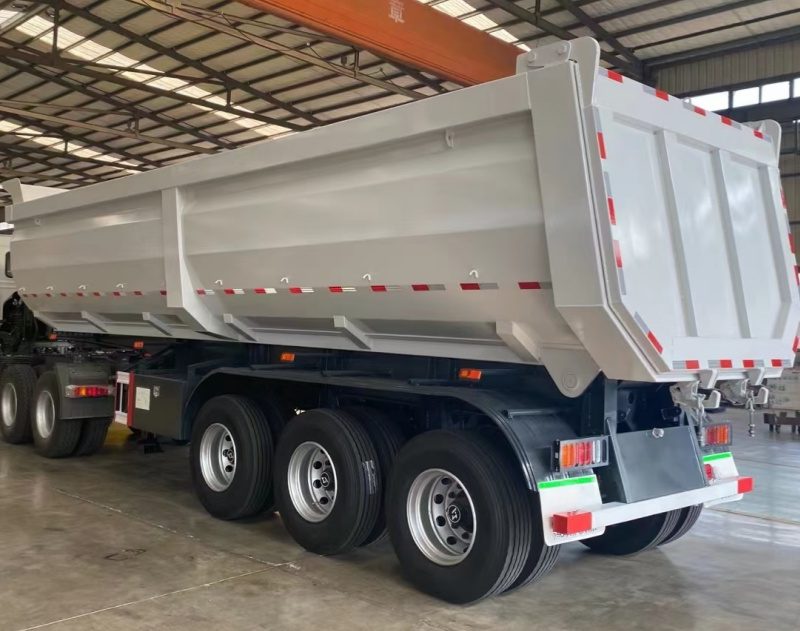

                                               35CBM Tipper Semi Trailer For Sale

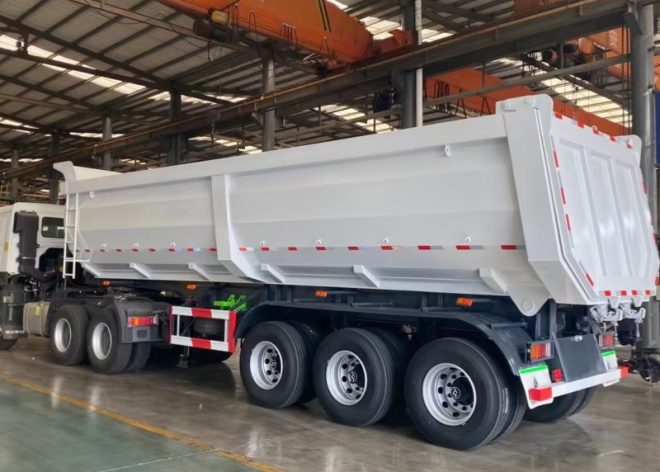

                                    35CBM Tipper Semi Trailer For Sale

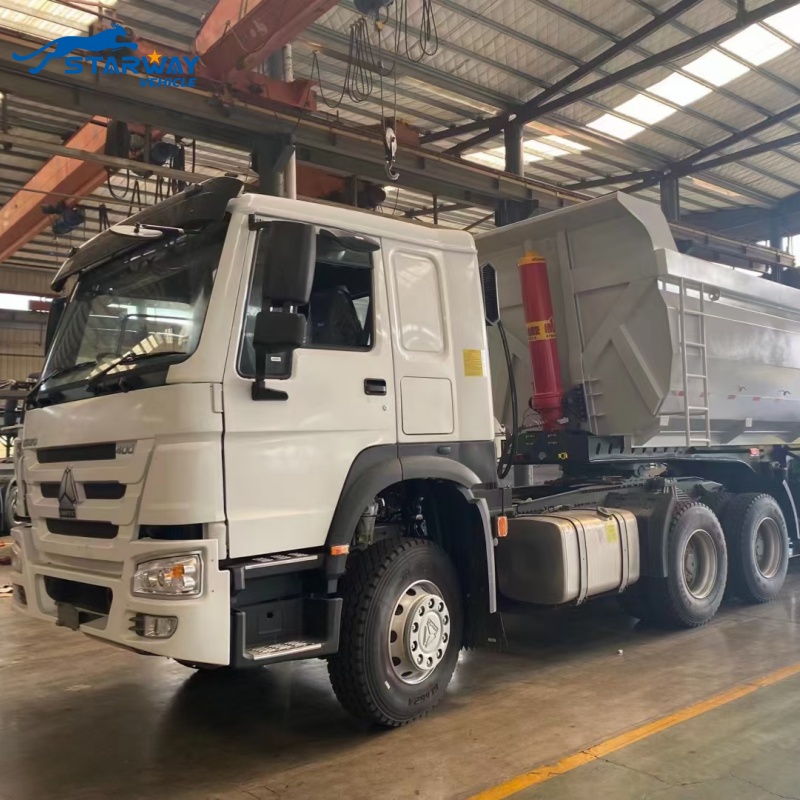

                                      35CBM Tipper Semi Trailer For Sale

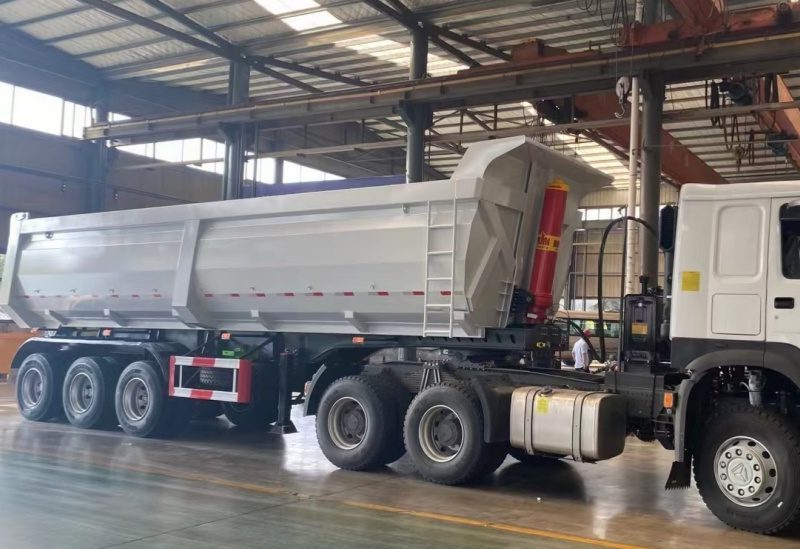

                                                 35CBM Tipper Semi Trailer For Sale

The Specifications of  Standard STARWAY VEHICLE Dump Semi Trailer ：

Brand ：Starway Vehicle

Application ：Coal/Mine/Stand/Stone Loading

Dump Style : Rear Dump

Loading Capacity : 30T-100T

Axle : 2/3/4*13/16T FUWA/BPW/Starway Vehicle

Dimensions: 98,000mm * 2,500mm * 3,800mm (Standard Dimensions, Customizable)

Cylinder : HYVA (model is according to the length of cargo box)

Floor Plate Thickness : 5mm

Cargo Thickness : 4mm

Cargo Style : Rectangluar/Round

Front Axle Lifting: Available

Material : Q345/T700

Tire : 11.00R20/12R22.5*8/12/16 pieces Linglong/Triangle/Double-Coin/Bridgestone

Rim : 8.0/9.0*8/12/16 pieces,steel/aluminum

Suspension : Mechanical/Air

Leaf Spring : 90mm*13/16mm*10 pieces

Landing Gear : 28T two-speed,JOST

King Pin : #50(2’’)/#90(3.5’’),JOST/Other Brand

Tool Box : Steel/Aluminum
