The rear dump semi-trailer is a sturdy and reliable transportation tool specially designed for transporting bulk and dispersed materials. It is widely used in the transportation of heavy materials such as coal, ore, earthworks, and building materials. This type of semi-trailer is often used in large-scale mining operations as well as other heavy-duty industries, especially in these industries, where efficient transportation and safe unloading processes are key to ensuring that the work goes smoothly.

The design of our rear tipper semi-trailers focuses on efficient unloading and large-capacity loads. Its unique flipping mechanism can achieve quick and safe dumping when unloading, significantly improving transportation efficiency, reducing labor intensity, and saving time. This makes it one of the most popular choices in mining, construction, and other industries that require large amounts of material to be transported.

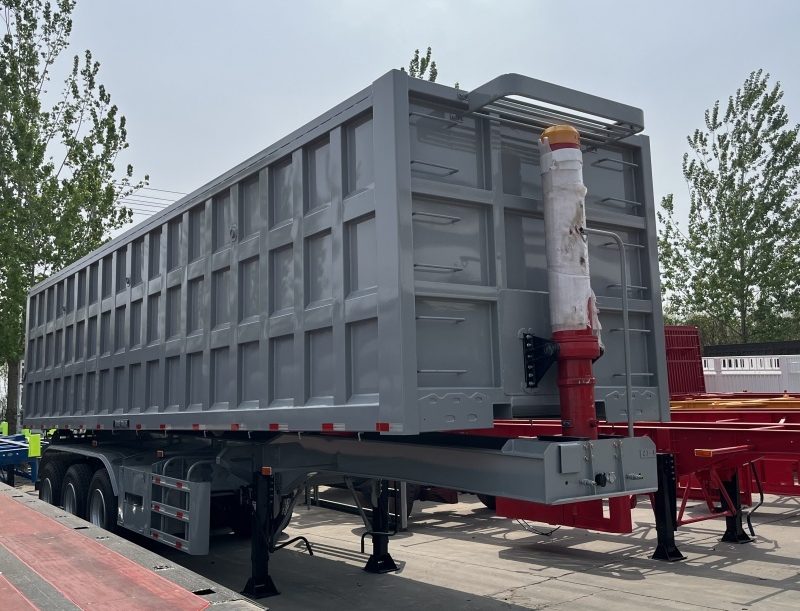

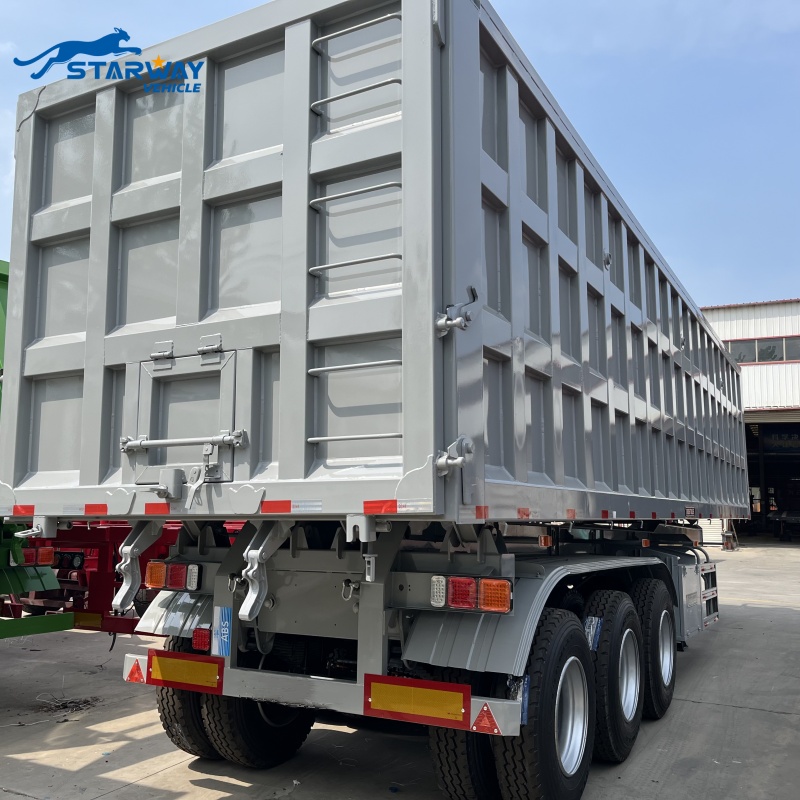

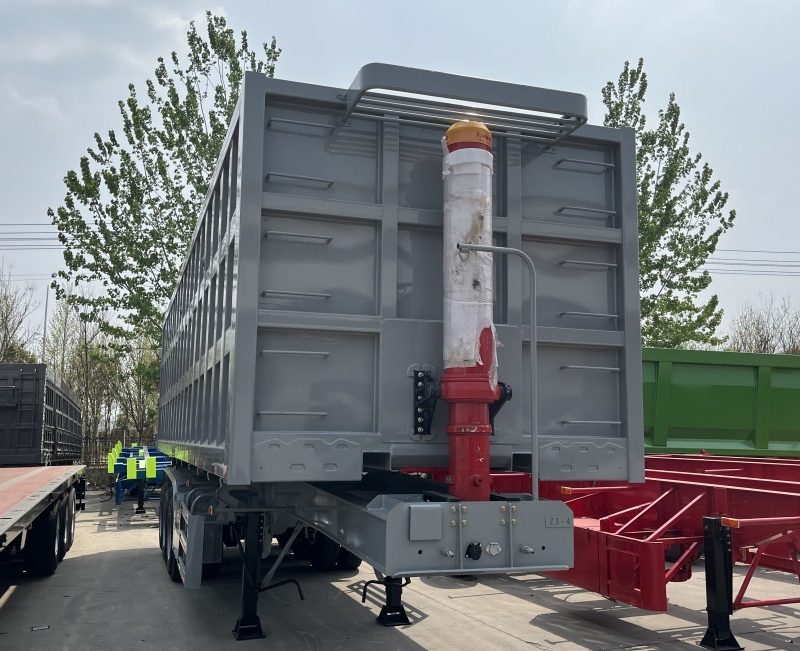

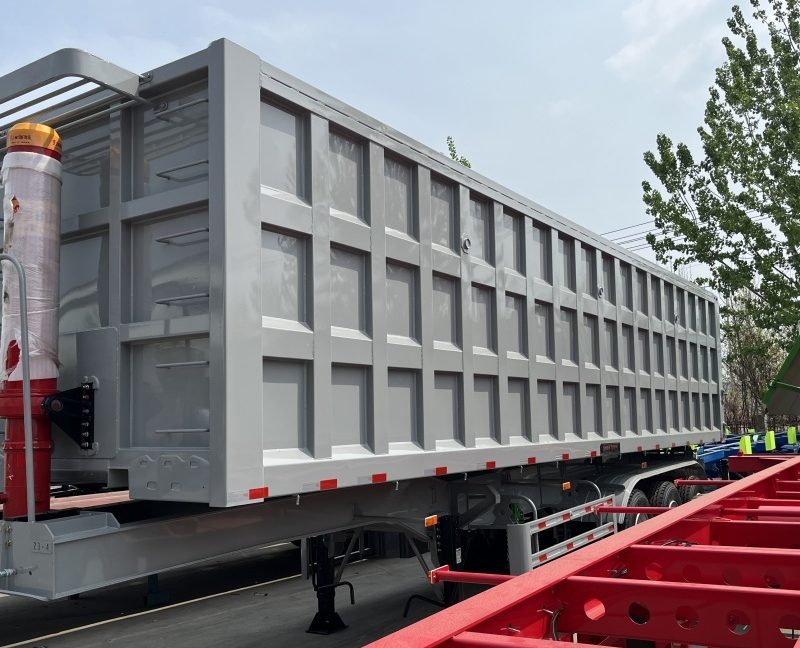

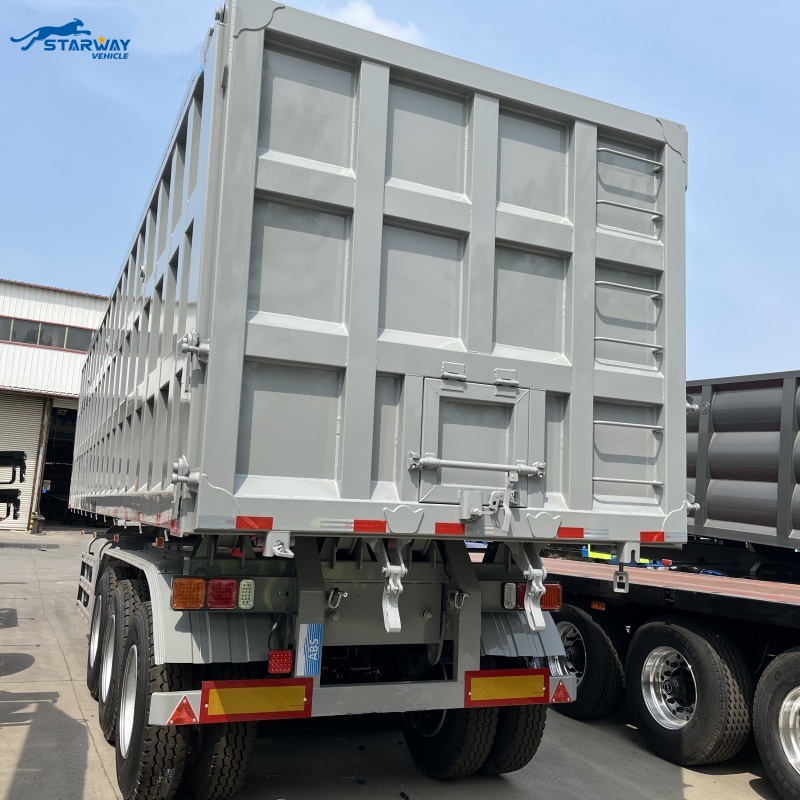

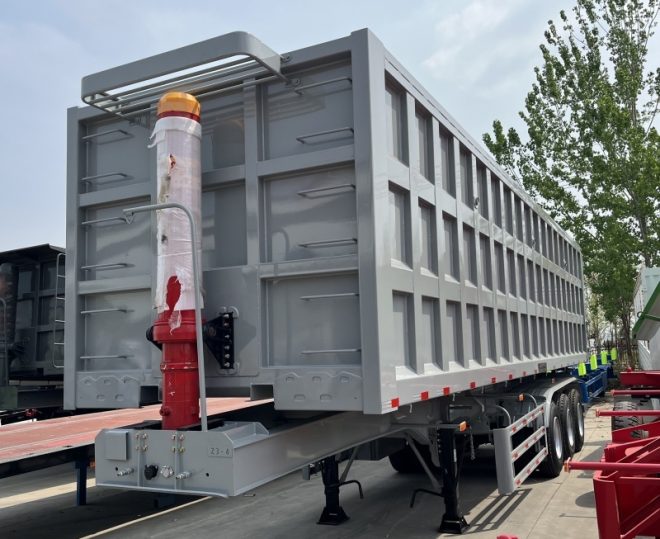

                                      30 Cubic Meters Dumper Trailer

                          30 Cubic Meters Dumper Trailer

                            30 Cubic Meters Dumper Trailer

                                        30 Cubic Meters Dumper Trailer

The Specifications of  Standard STARWAY VEHICLE Dump Semi Trailer ：

Brand ：Starway Vehicle

Application ：Coal/Mine/Stand/Stone Loading

Dump Style : Rear Dump

Loading Capacity : 30T-100T

Axle : 2/3/4*13/16T FUWA/BPW/Starway Vehicle

Dimensions: 98,000mm * 2,500mm * 3,800mm (Standard Dimensions, Customizable)

Cylinder : HYVA (model is according to the length of cargo box)

Floor Plate Thickness : 5mm

Cargo Thickness : 4mm

Cargo Style : Rectangluar/Round

Front Axle Lifting: Available

Material : Q345/T700

Tire : 11.00R20/12R22.5*8/12/16 pieces Linglong/Triangle/Double-Coin/Bridgestone

Rim : 8.0/9.0*8/12/16 pieces,steel/aluminum

Suspension : Mechanical/Air

Leaf Spring : 90mm*13/16mm*10 pieces

Landing Gear : 28T two-speed,JOST

King Pin : #50(2’’)/#90(3.5’’),JOST/Other Brand

Tool Box : Steel/Aluminum
