Three-axle side-dump trailers are designed for efficient long-distance transportation, with greater carrying capacity and lower transportation costs. Its strong structure and stable design make it ideal for transporting heavy materials such as ore, coal and other bulk cargo.

One of the outstanding features of this trailer is its side dump function, which significantly increases loading and unloading efficiency. By tilting and opening the rear door, the trailer can quickly unload material, reducing time spent at the loading and unloading point. The side dump mechanism also increases safety and stability during transportation, making it a reliable option for moving large quantities of cargo over long distances.

In addition, the trailer is equipped with a tow pin for easy connection to the truck’s saddle. For added flexibility, you can also choose from other types of coupling configurations to meet your specific shipping needs.

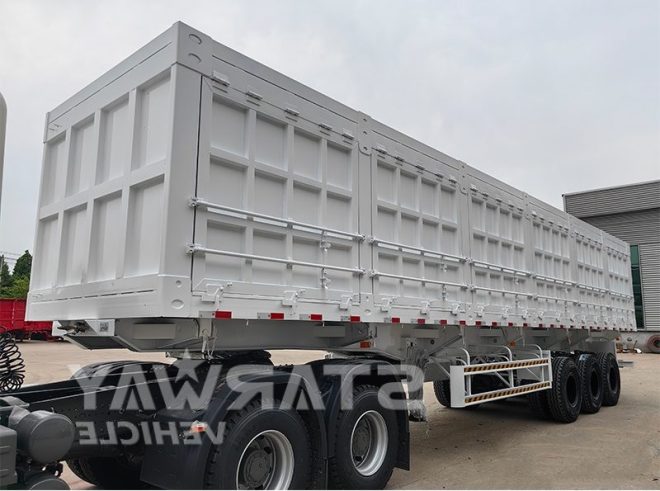

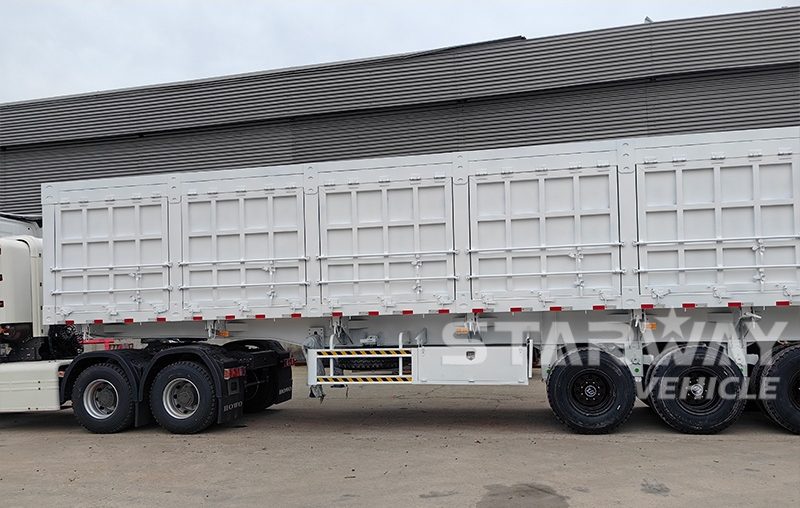

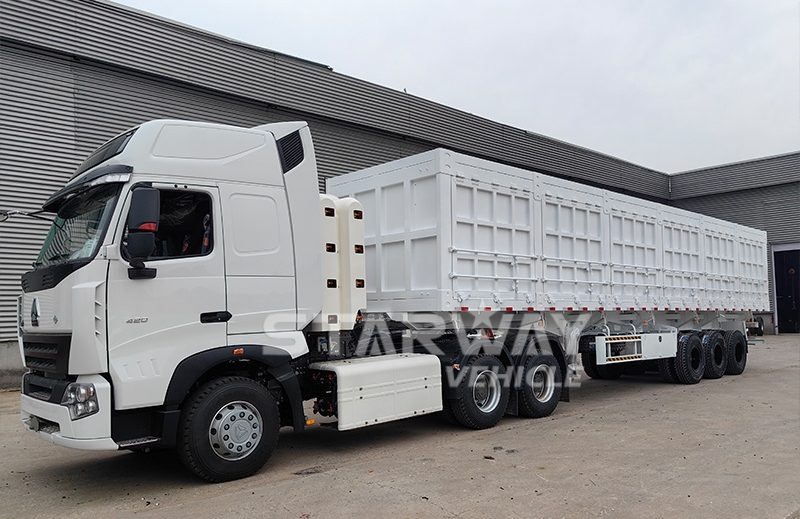

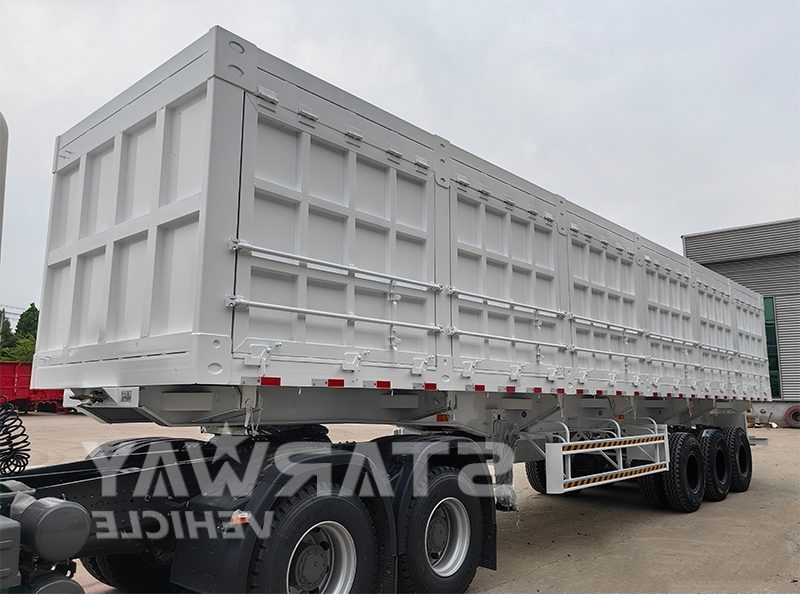

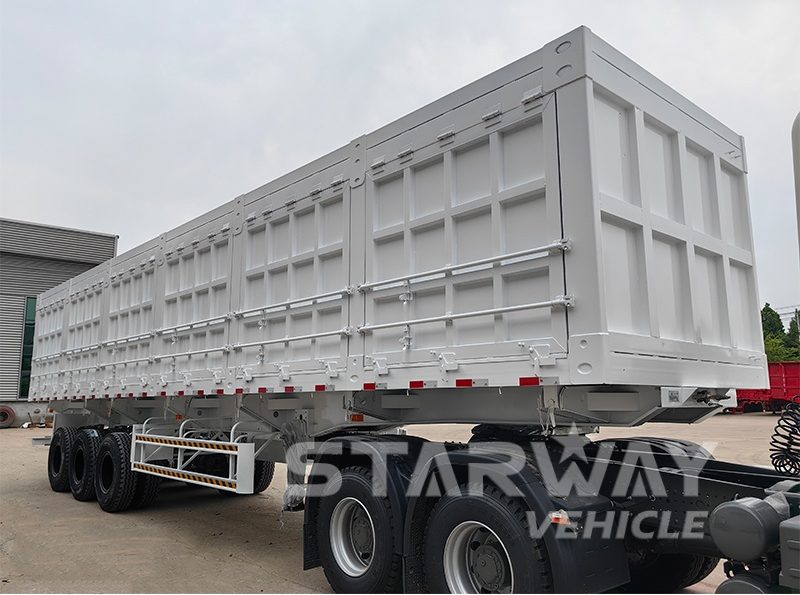

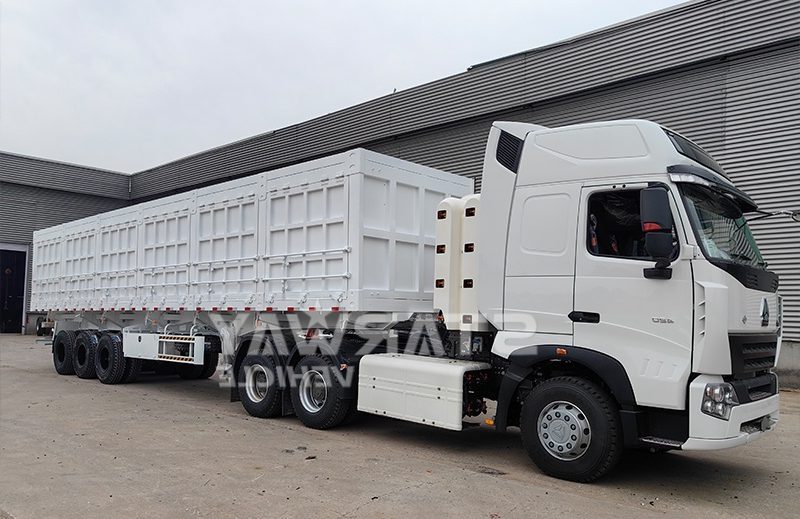

                                          30CBM Side Tipper Semi Trailer

                              30CBM Side Tipper Semi Trailer

                              30CBM Side Tipper Semi Trailer

                                            30CBM Side Tipper Semi Trailer

The Specifications of  Standard STARWAY VEHICLE Side Dump Semi Trailer ：

Brand ：Starway Vehicle

Application ：Coal/Mine/Stand/Stone Loading

Dump Style : Rear Dump

Loading Capacity : 30T-100T

Axle : 2/3/4*13/16T FUWA/BPW/Starway Vehicle

Dimensions: 98,000mm * 2,500mm * 3,800mm (Standard Dimensions, Customizable)

Cylinder : HYVA (model is according to the length of cargo box)

Floor Plate Thickness : 5mm

Cargo Thickness : 4mm

Cargo Style : Rectangluar/Round

Front Axle Lifting: Available

Material : Q345/T700

Tire : 11.00R20/12R22.5*8/12/16 pieces Linglong/Triangle/Double-Coin/Bridgestone

Rim : 8.0/9.0*8/12/16 pieces,steel/aluminum

Suspension : Mechanical/Air

Leaf Spring : 90mm*13/16mm*10 pieces

Landing Gear : 28T two-speed,JOST

King Pin : #50(2’’)/#90(3.5’’),JOST/Other Brand

Tool Box : Steel/Aluminum
