A dump truck is a type of semi-trailer designed specifically for dump function, making it a valuable asset to the logistics and transportation industry. Unlike standard trailers, dump truck trailers offer significant advantages such as simple operation, high transportation efficiency, reduced material surplus and labor savings, which makes them increasingly popular.
Dump trailers are mainly divided into two categories based on their unloading methods: side dump and rear dump. Although commonly used, rear dump trailers have some design flaws. Its hydraulic cylinder takes a long time to lift, and when it is lifted, the center of gravity will become too high, making the trailer easy to tip over, especially on uneven roads, which may cause safety hazards.
Therefore, side dump trailers have become the first choice for many users. This design provides greater stability and safety, reducing the risk of accidents while improving the overall efficiency of the offloading process. Side-dump is considered the mainstream choice in today’s market, providing reliability and efficiency in various industries such as construction and mining.

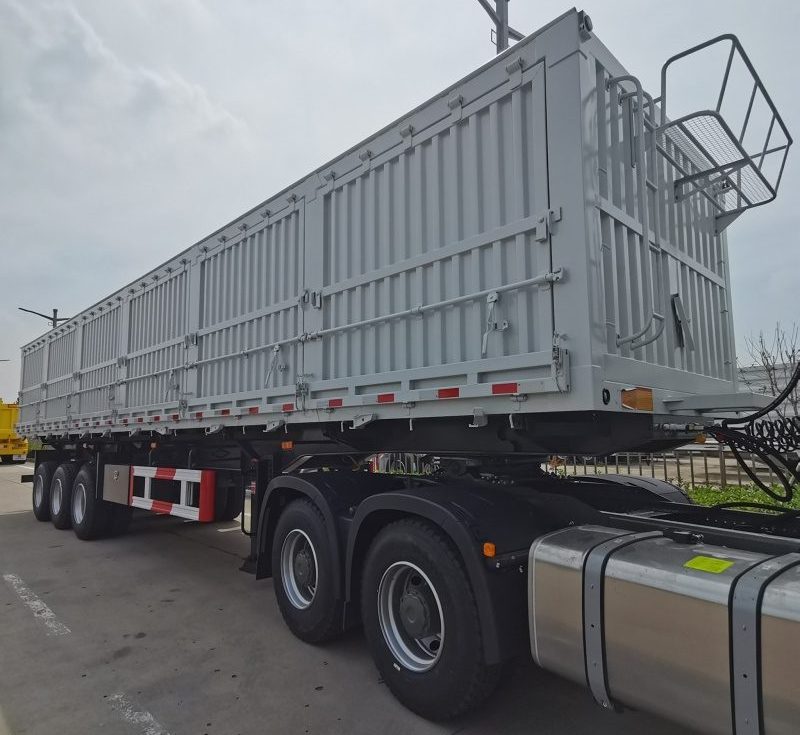

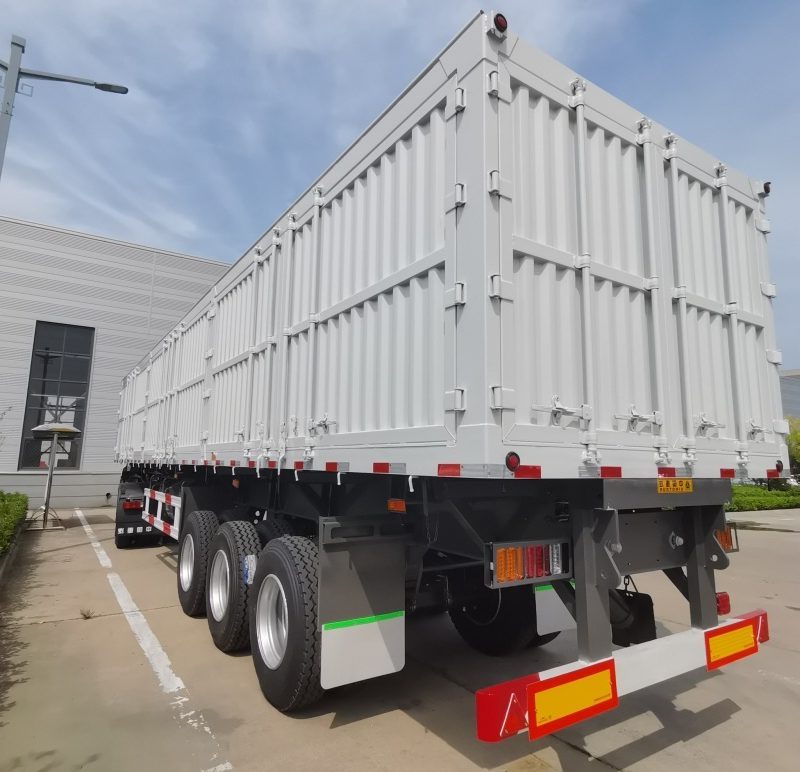

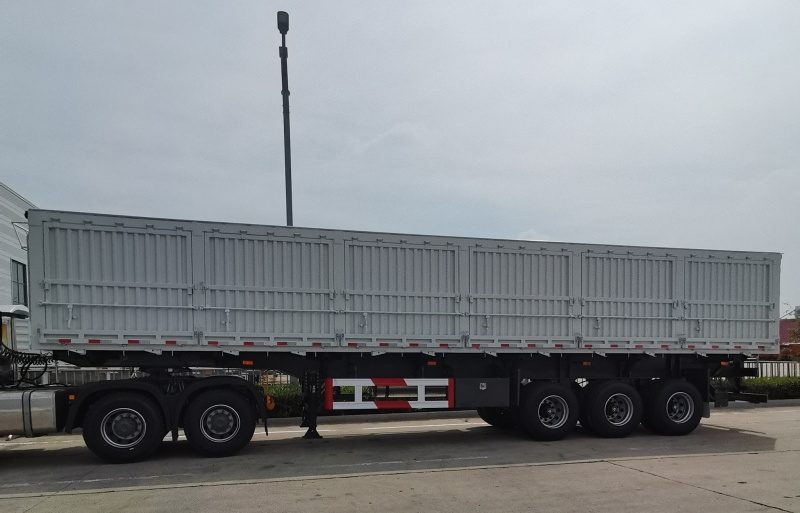

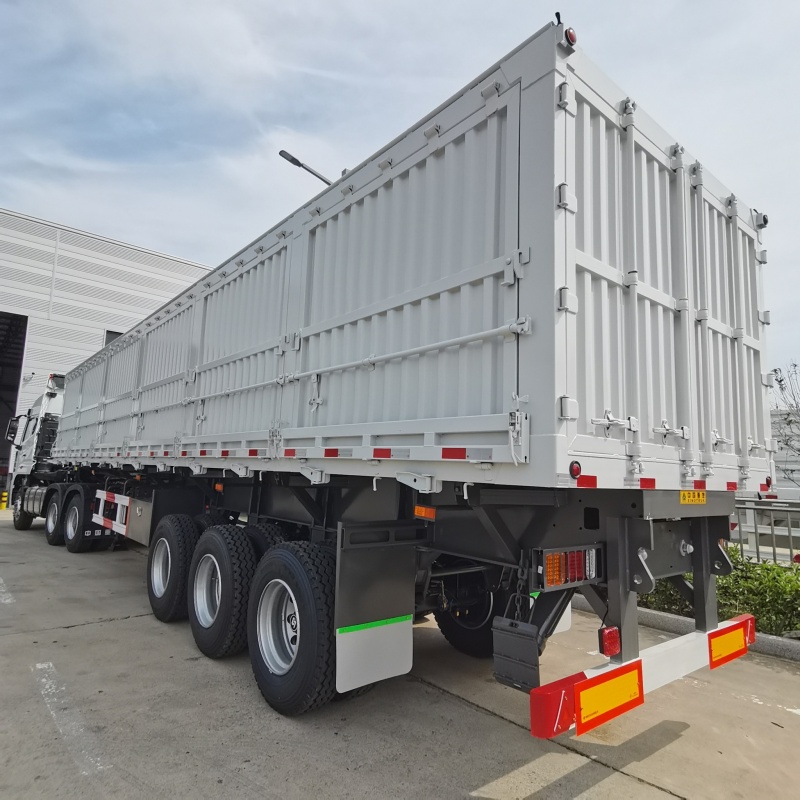

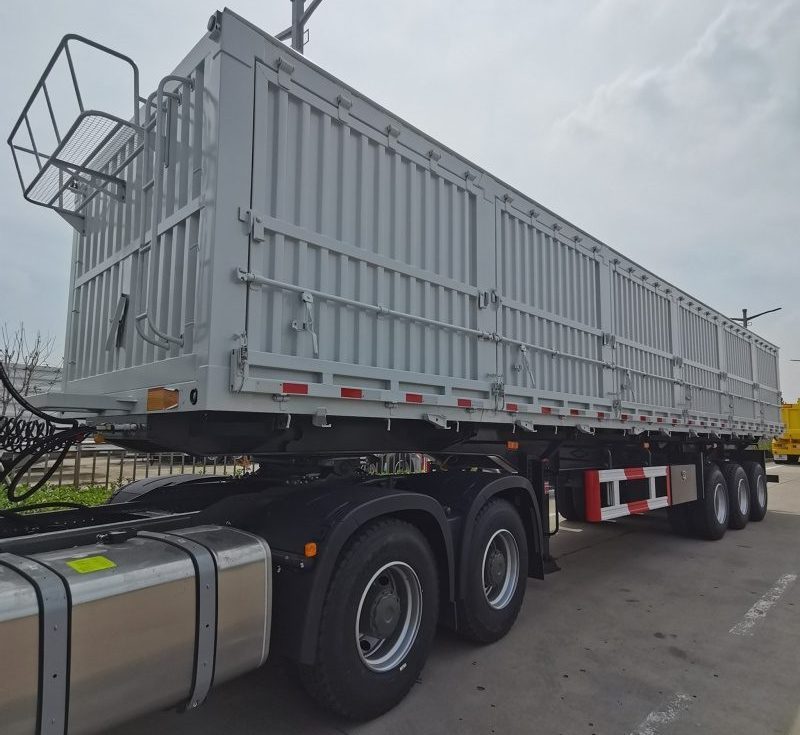

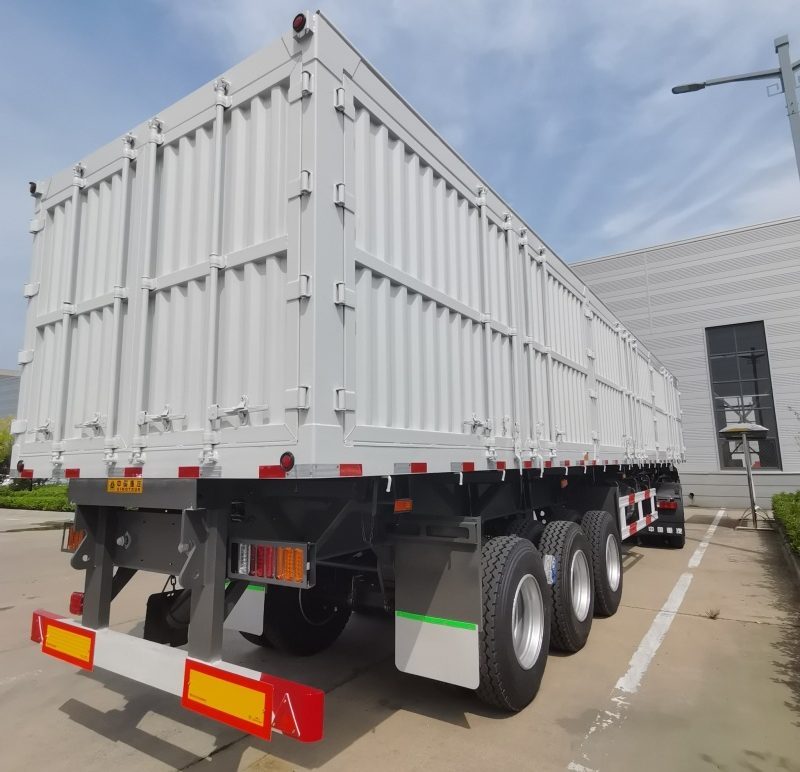

3Axles 35 Cubic Meters Side Dump Trailer
3Axles 35 Cubic Meters Side Dump Trailer
3Axles 35 Cubic Meters Side Dump Trailer
3Axles 35 Cubic Meters Side Dump Trailer
The Specifications of Standard STARWAY VEHICLE Dump Semi Trailer ：
Brand ：Starway Vehicle
Application ：Coal/Mine/Stand/Stone Loading
Dump Style : Rear Dump
Loading Capacity : 30T-100T
Axle : 2/3/4*13/16T FUWA/BPW/Starway Vehicle
Dimensions: 98,000mm * 2,500mm * 3,800mm (Standard Dimensions, Customizable)
Cylinder : HYVA (model is according to the length of cargo box)
Floor Plate Thickness : 5mm
Cargo Thickness : 4mm
Cargo Style : Rectangluar/Round
Front Axle Lifting: Available
Material : Q345/T700
Tire : 11.00R20/12R22.5*8/12/16 pieces Linglong/Triangle/Double-Coin/Bridgestone
Rim : 8.0/9.0*8/12/16 pieces,steel/aluminum
Suspension : Mechanical/Air
Leaf Spring : 90mm*13/16mm*10 pieces
Landing Gear : 28T two-speed,JOST
King Pin : #50(2’’)/#90(3.5’’),JOST/Other Brand
Tool Box : Steel/Aluminum
